Default session plans

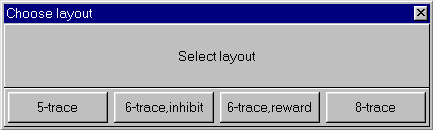

Choosing Edit default (protocol class) session plan brings up a layout selection menu like this:





Layouts control the session plan and real-time brainwave screen display and processing actions. The "5-trace" layout is the same layout as EEGer 4.0 used. The "6-trace,inhibit" layout adds a second (low) inhibit processing display/control. This layout specifies that any of the three inhibit streams can inhibit rewards. The "6-trace,reward" layout adds a second reward stream. In this mode, BOTH reward streams must be in a reward state for a score to be given. The "8-trace" mode has two sets of reward+2 inhibits, each driven by a different input stream. Again, BOTH rewards must be in a reward state for a score to be given. There are separate session plans for each layout.

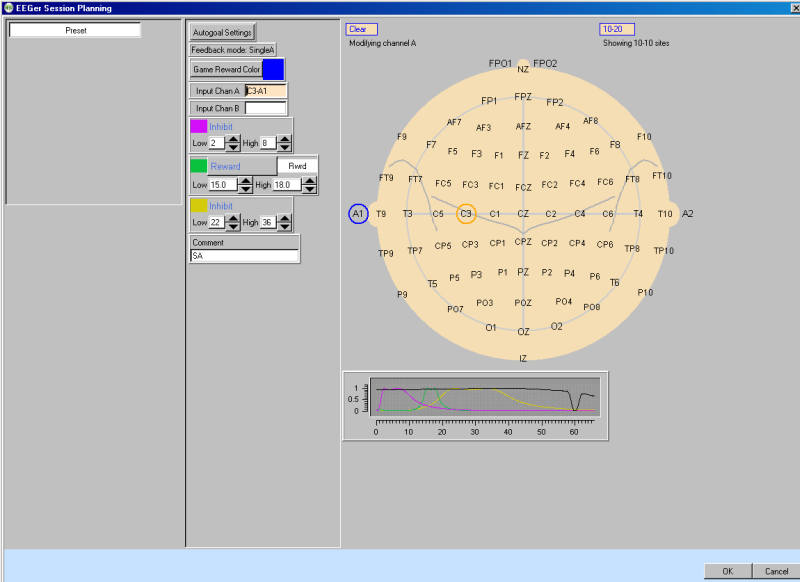

After selecting a layout, a session plan edit screen like this will be displayed.



This is the same session plan editing screen that is explained later under Plan Session. These default session plans are only used when client/protocol classes are first selected. The default plan is copied to the specific client/protocol directory if no existing session plan exists. The plan can then be modified without affecting the default plan. Each client has a personal plan for each protocol class and each layout.
