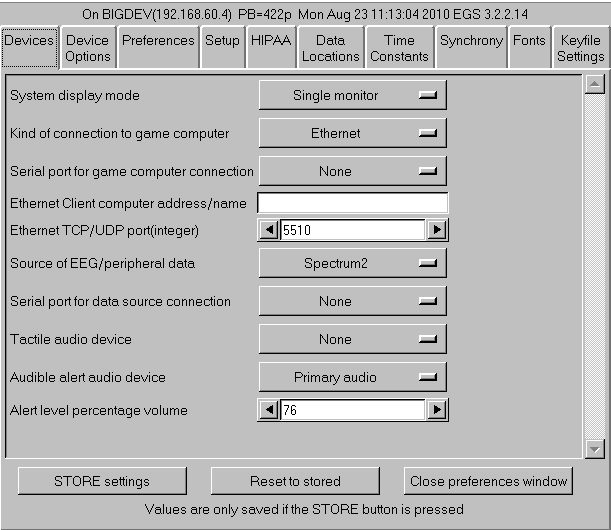

Devices
The Devices tab controls which connections are to be used for communications/data sampling.
"System display mode" selects the mode of operations of the user interface. Changing this option makes EEGer exit since the value changes the kind of initialization needed. A special keyfile is required to select 2-computer or Dual-monitor operation.
"Kind of connection to game computer" selects the particular interface style used to communicate with the game computer.
"Serial port for game computer connection" allows the choice of a serial port.
"Ethernet Client computer address/name" accepts either a name or (dotted IP) address of a Client computer if Ethernet style connection is desired.
"Ethernet TCP/UDP port(integer)" allows selection of a port to be used for Ethernet connections. The default value is 5510.
"Source of EEG/peripheral data" allows selection of an EEG/peripheral data source.
"Serial port for data source connection" allows the choice of a serial port. Note that you cannot use the same port for both game computer connection and a data device.
"Tactile audio device" specifies the desired port to use for tactile feedback. Two audio devices are required for tactile feedback in single-computer operation.
"Audible alert audio device" selects a sound card to use for therapist audio alerts (from the session plan).
"Alert level percentage volume" specifies the relative volume used for the alert when played. The default value is 75%.
