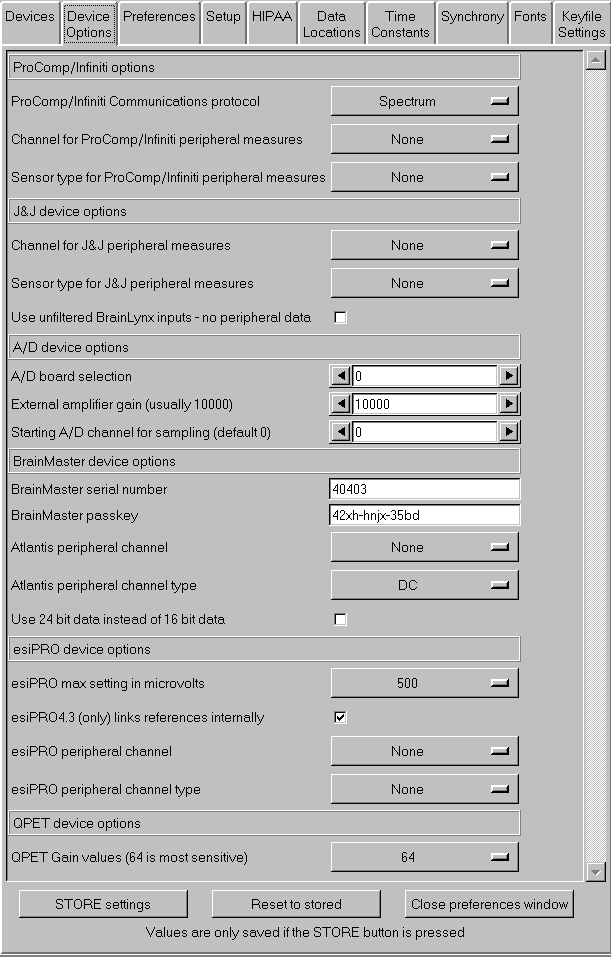

Device Options

• "Thought Technology device type" is the required selection for TTUSB interface usage.

• "ProComp/Infiniti Options" allows either Spectrum or Biograph communications protocol to be selected.  This must match the switch settings on the ProComp.

• "Channel for ProComp/Infiniti peripheral measures" allows selection of the appropriate input channel for Procomp/Infiniti peripheral data.

• "Sensor type for ProComp/Infiniti peripheral measures" allows selection of the kind of sensor attached (and how to interpret the inputs).

• "Channel for J&J peripheral measures" allows selection of the peripheral input channel for appropriate J&J amplifiers.

• "Sensor type for J&J peripheral measures" allows selection of the kind of peripheral interface connected (and interpretation of inputs).

• "Use unfiltered BrainLynx inputs" selects inputs from the BrainLynx that are NOT lowpass filtered within the BrainLynx (and inhibits peripheral inputs!).

• "A/D board selection" allows selection of a which A/D board is to be used.  The A/D board selection list must be prepared using InstaCal™

• "External amplifier gain (usually 10000)" allows changing the gain of the external amplifier used.  The default setting (10000) matches the "Neurocybernetics" amplifiers built by Picchiottino.

• "Starting A/D channel for sampling(default 0)" allows changing the base A/D channel for 2-channel sampling for use with amplifiers having "unusual" wired/programmed configurations.

• "BrainMaster serial number" is where the serial number of the connected BrainMaster/Atlantis device must be entered by the user.

• "BrainMaster passkey" is where the BrainMaster/Atlantis passkey must be entered by the user.  This passkey allows but does not require dashes between fields and is case-insensitive.  Note:  passkeys for use with EEGer are different than passkeys for use with BrainMaster software.

• "Atlantis peripheral channel" allows selection of the appropriate input channel for Atlantis peripheral data.

• "Atlantis peripheral channel type" allows selection of the kind of sensor attached (and how to interpret the inputs).

• "Use 24 bit data instead of 16 bit data" allows selection of high-resolution unfiltered data.

• "esiPRO max setting in microvolts" selects the maximum gain setting for the amplifier.

• "esiPRO4.3 (only) links references internally" links both reference jacks together internally to the esiPRO4.3.

• "esiPRO peripheral channel" allows selection of the appropriate input channel for  peripheral data.

• "esiPRO peripheral channel type" allows selection of the kind of sensor attached (and how to interpret the inputs).

• "QPET Gain values(64 is most sensitive)" allows selection of a gain control for the QPET device.
