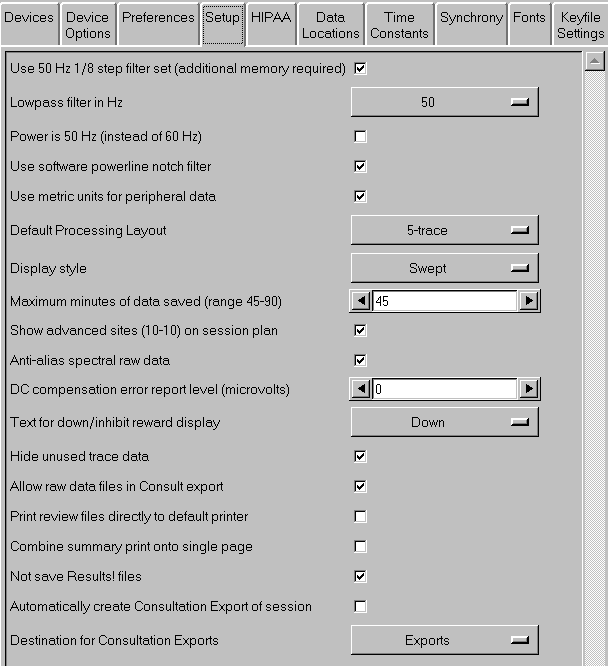

Setup

• The "Use 50 Hz 1/8 step filter set (additional memory required)" checkbox allows selection of the 50 Hz filter set (instead of the 40 Hz set) but requires an additional 12 MB of memory. Systems with limited memory may experience degradation issues with this setting.

• "Lowpass filter in Hz" allows selection of the lowpass filter used on all data.

• "Power is 50 Hz instead of 60 Hz" selects 50 Hz as the local powerline frequency.

• "Use software powerline notch filter" enables a software notch filter to remove powerline interference.  Some EEG amplifier/converters do not filter the correct powerline signals.

• "Use metric units for peripheral data" allows selection of metric units, notablly for temperature data .

• The "Default Processing Layout" is set for 5-trace mode.

• The "Display style" can be selected to be either swept or scrolling.

•    The "Maximum minutes of data saved (range 45-90)" can be set. This value is used to prescale/preallocate data storage.

            While a session can go on longer than this time, only this much raw data will be saved!

• "Show advanced sites (10-10) on session plan" controls whether the 10-10 or 10-20 site locations will show by default on the "head" displays during session planning. Clicking on the "right" spot on the head will make them show up anyway.

• "Anti-alias spectral raw data" controls how raw line segments are drawn. Some video modes/cards require different settings to make the "raw" graphs have a smooth appearance.

• The "DC compensation error report level" is a value that can be set to provide a (red) warning when the DC offset level correction exceeds a user-input value. If set to zero (the default), no warnings will be given (although the actual DC offset levels are reported on the debug screen). A typical setting would be TBD.

• The "Text for Down/Inhibit text display" option allows selection of the text label for down/inhibit training.  It is just a label and has no functional changes.

• The "Hide unused trace data" checkbox determines if currently-unused traces are hidden from view (to minimize therapist distraction).  These traces include unused raw, filtered, and FFT displays.  This setting can be turned on/off during realtime operation using Alt-F12.

• The "Allow raw data files in Consult export" option determines if raw data files are selectable for inclusion in consultation files.

• The "Print review files directly to default printer" option controls whether the review print buttons save files in the EEGer print directory (for later printing) or send them directly to the default Windows printer.  Snap files and screen captures still only go to the print directory for later printing.

• The "Combine summary print onto single page" forces the summary data printout to be one page.  The graphics and text are shrunk to fit and may not be readable.

• The "Not save Results! Files" option disables the automatic creation of Results! Files (for use with the optional Results! Program).

• The "Automatically create Consultation Export of Session" option causes a COnsultation Export of the session just run to be automatically created on the desktop.

• "Destination for Consultation Exports" allows destination choices for the Consultation Export file.  These choices are: "Desktop", "My Documents", or wherever the "Exports" filepath is specified.
