Change colors
You can run EEGer without ever changing the default colors. If you prefer different colors for EEGer, you can change the colors used to identify frequencies and some colors for the real-time feedback screen by selecting the
Change Colors option of the Tools menu.

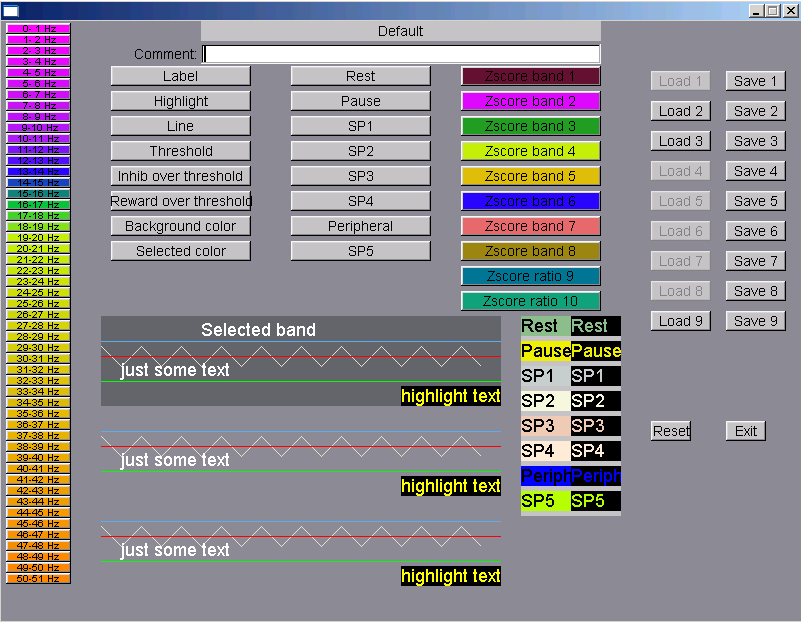

This screen will then pop up:
Clicking on any of the left-hand buttons brings up a color chooser window for that particular one Hertz frequency "color". Clicking on the buttons at the top brings up a color chooser window for that particular real-time color use. The color use is shown by the examples below the buttons. You must click on the Save button for the specified color set to save the current color scheme for use. Of course, Reset will return you to the default color scheme. The color set actually used is specified in the Preferences settings. Colors 49-50/50-51 have special meaning as they are used by the FFT Highlight option (Alt-F10) described later. Currently defined colorsets can be seen by observing the 'active' Load buttons. You cannot load an undefined colorset.
