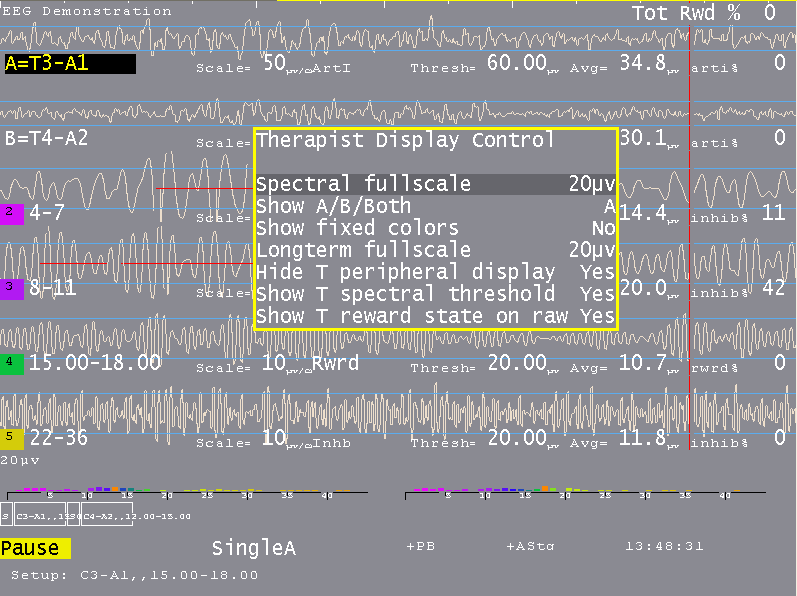

Therapist display control popup

The therapist display control popup is initiated/dismissed by the "D" key.

The line to alter is controlled by PageUp/PageDown or arrow up/arrow down and the settings changes by the "+" and "-" keys (just like threshold setting) and by the Left/Right arrow keys.

• The "Spectral fullscale" setting controls the fullscale setting of the Therapist Spectral Mirror display.
• The "Show A/B/Both" control determines if the Therapist sees just the A trace signal mirrored, just the B trace signal mirrored, or both (A on the left and B on the right).
• The "Show fixed colors" option determines if the fixed color set is used instead of the user-chosen color set (but just on the Therapist displays).
• The  "Longterm fullscale" setting is another way to control the long-term display scale.
• The "Hide T peripheral display" removes the peripheral data from the long-term display (assuming there is any peripheral data).
• The "Show T spectral threshold" controls whether or not the threshold and average values are displayed over the spectral mirror display.
• The "Show T reward state on raw" option controls display of the green reward line display on the raw traces.
