Spectral Mirror

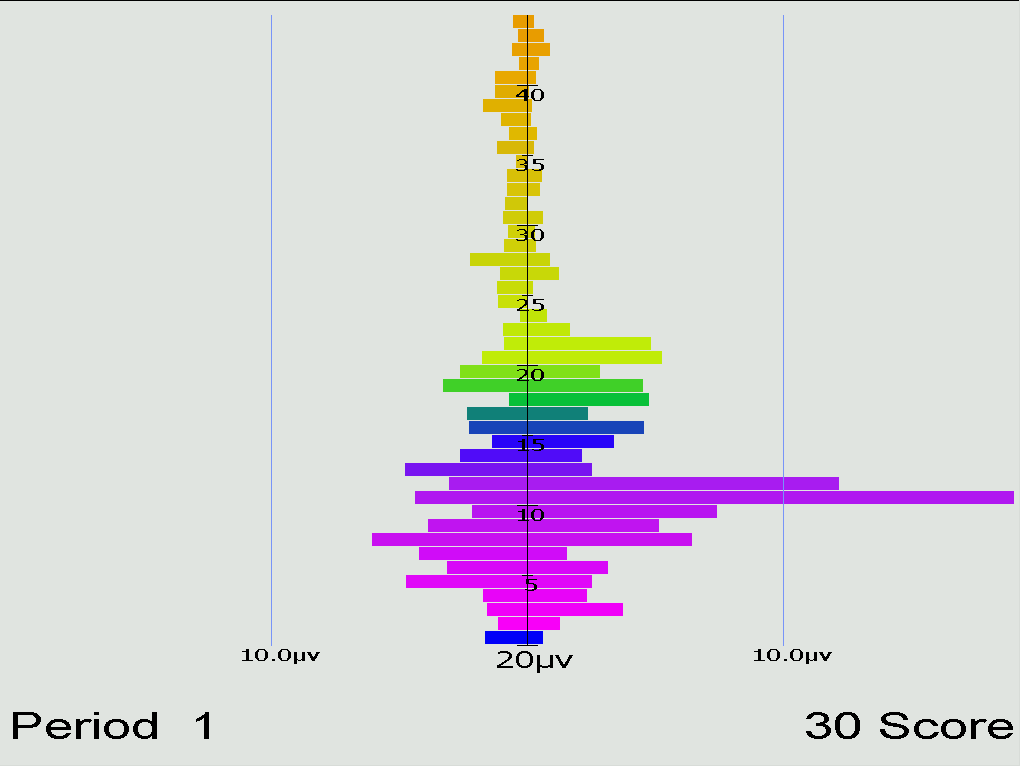

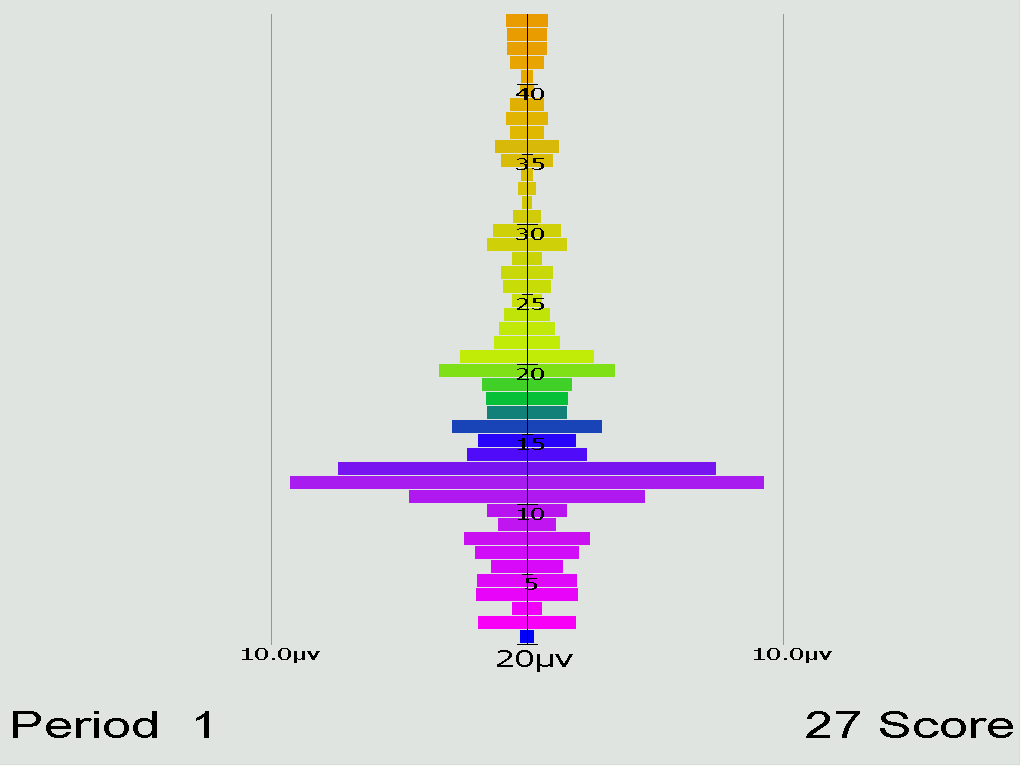

The Spectral Mirror display shows amplitude of the EEG signals at various frequencies. Above is shown the display with two channels of information displayed. Below is a mirrored display showing only one channel but reflected on both sides of the center axis.
The therapist controls the horizontal scale for this display whose data is the real-time spectral data used for the Therapist displays.
