Appendix 23: Boat Race



WayForward Technologies





You should have received the following items:

Boat Race™ Installation CD

EEGer™ Keyblock File Disk (license update, if games purchased separately)



In order for Boat Race to run, you will be installing game software on the Game computer and a license file on the Therapist computer.  Boat Race requires 2-computer or Dual Monitor configuration.

System Requirements for Boat Race

1. EEGer software version 4.2.0 or greater

2. Windows XP/Vista

3. 128mb or greater video memory; min. 800x600px, 16-bit color

4. DirectX Version 9.0c or later with d3dx9 components*



IMPORTANT: Before installing a newer version of DirectX, be certain your video driver is compatible with that version of DirectX or you may experience problems with displays.  DirectX 9 and d3dx9 installations are accessible by Exploring the installation CD contents.



Boat Race Installation

Game Computer - Software Installation

A. If the EGS game menu is displayed, press Esc to exit to Windows.

B. Insert the installation CD into the Game computer's CD/DVD drive.

C. In just a moment, the CD should start automatically and ask if you would like to install Boat Race. (If the CD does not start automatically, double-click on the "My Computer" icon, and double-click on the CD/DVD drive icon.)

D. Click "Install Boat Race" and follow the on screen installation steps, choosing the default options.

E. Once the software has installed, be sure to restart the computer.

F. If using EEGer/EGS Version 4.2.x or greater, finalize the game installation:

2-Computer Configuration:  Launch EGS and press F9.

When the list of installed games appears, click DONE-Save Configuration.





Therapist Computer - License Keyblock File Installation

1. Insert the EEGer Keyblock File Disk into the appropriate disk drive.

2. Double-click the EEGer icon to start the program.

3. Select Files - Read EEGer Keyblock Files

4. When prompted, use the Open dialog to locate the keyblock file on the CD.  Click the filename to highlight the file and click OK.

5. Finalize the Games:

Dual Monitor Configuration:

  select Tools-Game Initialization Tool.

  Click Done Save Configuration then Save All Games.

2-Computer Configuration:

  In EEGer, select Tools - Retrieve Installed Games List

  then Tools-Tailor Installed Games and click SAVE All Games



Boat Race Game Description

As the name suggests, Boat Race is a game where three boats race.  The positions of the boats are driven by the inhibit and reward band amplitudes, with perspective and wake showing amplitude and speed increasing with amplitude.



Inhibit conditions cut off the audio and thrust of the center ('reward') boat making it fall back in the race.

The colored bars at the bottom of the screen correspond to the amplitude of the inhibit and reward bands.

The fuel tank at the upper-right of the screen indicates how long optimal focus is being sustained (maintaining above threshold reward signal with no inhibits).

Inhibits can create a fog and dim the sky.

With sustained focus the reward boat jumps a ramp for added interest.

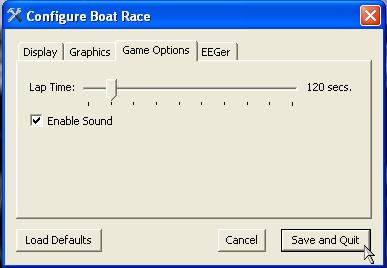

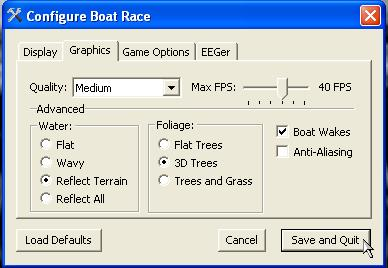

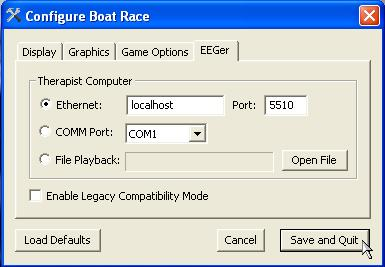

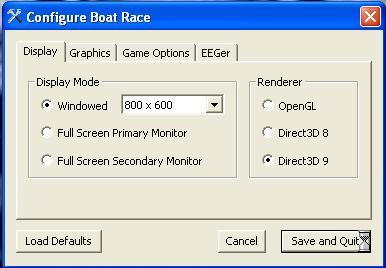

Game Configuration Options:

Click Start and select Programs or All Programs.

§ From the WayForward Program Group, select Boat Race - Configure Boat Race.

§ Select the appropriate tab to modify settings.  Click Save and Quit to save changes.
