Print menu

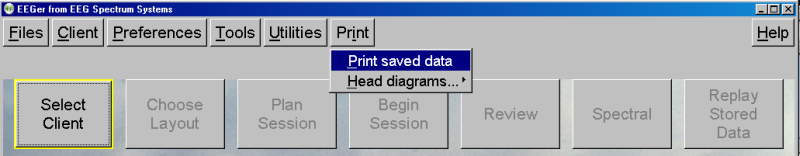

The Print menu item brings up the print manager screen to allow preview/printing/deletion of various graphical/textual outputs of EEGer.

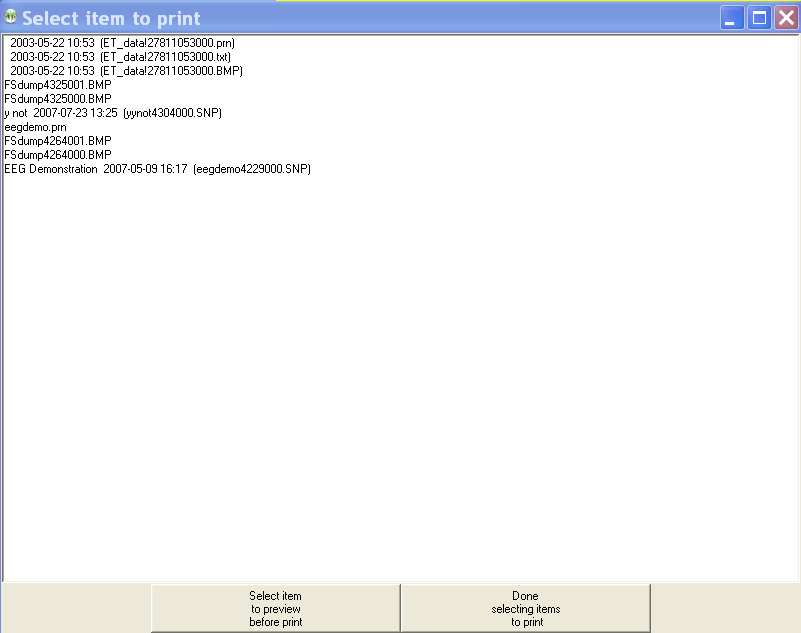

The print manager screen:

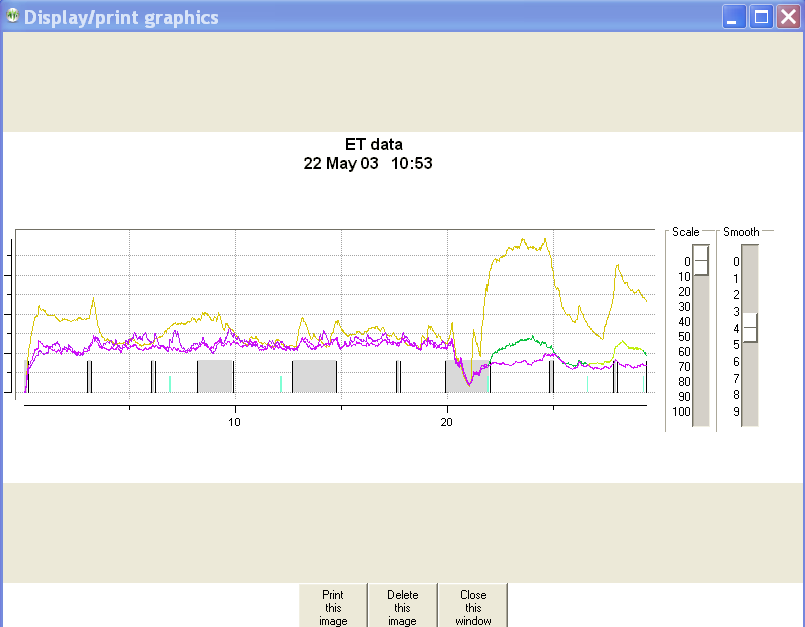

Double-clicking on one of the print menu items brings up a (preview) display screen with several button options (as shown in the sample below).

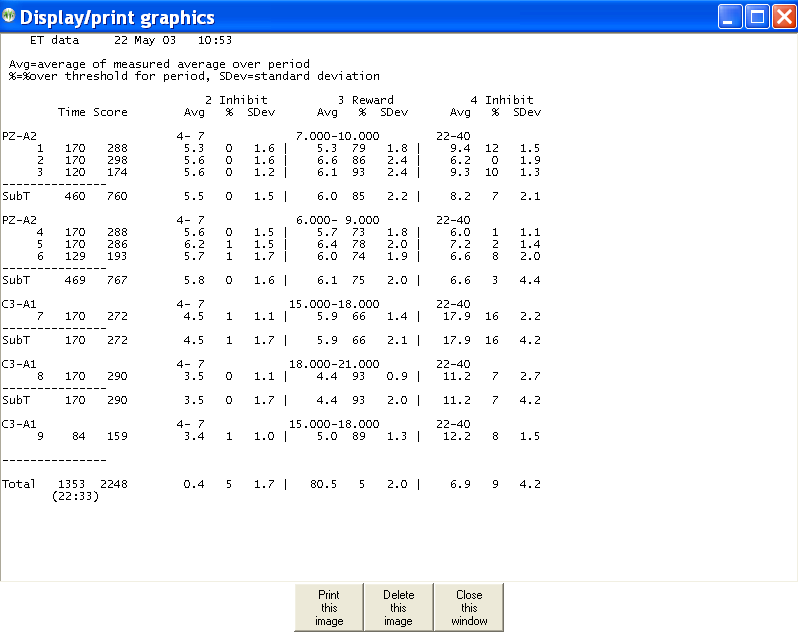

The Print button sends the printout to the current default Windows printer. The Delete button deletes the current file and returns to the print menu. The Done button just returns to the print menu (leaving the file still there). There may be more than one output file for the summary outputs (one for the graphics and one for the tabular data).

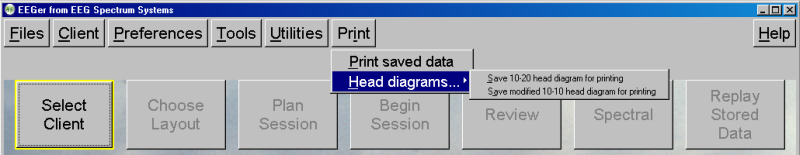

The Head diagrams option under Print allows the saving of standardized 10-20 and (modified) 10-10 electrode placement diagrams in the print directory.

They are printed using the same Print saved data method previously described.
